186472 - DIAMAX Edge Multiprofile Cutter CM DP - Homag (Brandt)

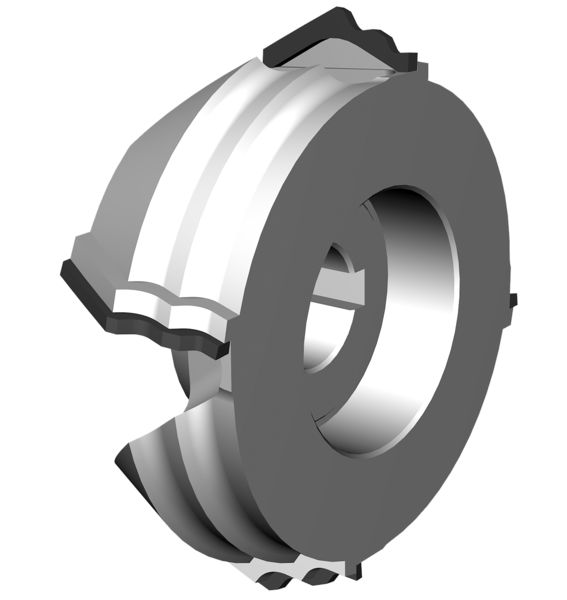

Product
Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- Homag (Brandt) edge banding machine with dual-profile technology
- For rounding of soft-wood, hard-wood, veneer and plastic edge bands
Design
- with shear angle
- polished face
- High-finish clearance angle
- n max=24,000 min-1
Advantages
- Very long edge life compared to the HW cutterhead version
- Optimized chip removal thanks to ChipMeister version
- No contamination of the machine with chips
- No malfunctions due to chips
- Reduction of the extraction output
- Low noise level
Notes
- Sense of rotation according to VDMA 8849

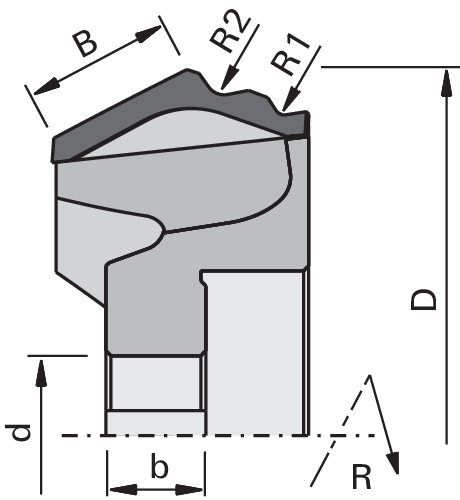

| Feature | Value | |
|---|---|---|
| R1 = Radius 1 | 1 [mm] | |
| R2 = Radius 2 | 2 [mm] | |
| Ø D = Cutting circle diameter | 74.24 [mm] | |
| B = Cutting width | 14 [mm] | |
| b = Hub width | 10 [mm] | |
| Ø d = Bore diameter | 16 [mm] | |
| Z = No. of teeth | 4 | |
| DKN = Double keyway | 5x2,3 [mm] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | Brandt | |
|
Dimensions entered are not listed?
available from stock |
||
