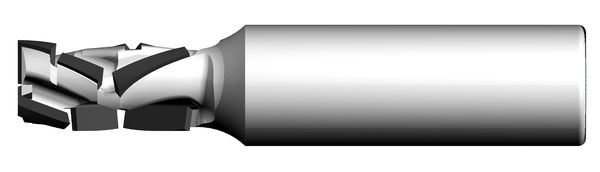

186572 - High-Performance Shank-Type Cutters CM DP Nesting - Z=3+3

CNC routers
for panel sizing with Nesting-Technology
for jointing, rabbeting and *grooving (*negative version) in raw and laminated panels

high cutting quality and high-quality cutting edges thanks to specially adapted cutting edge configuration
positive spiral: optimum upward chip evacuation towards the exhaustion
negative spiral: downward chip evacuation and cutting pressure
negative spiral especially for smaller or narrow workpieces and for grooving

clamping elements: use in high-precision clamping elements recommended (e.g. TRIBOS, ps-System)
with thread for length adjusting screw
in case of higher feed rates and thicker boards choose the higher diameter
adapt the cutting length to the panel thickness (H)
* indicate "H" in case of Nesting with protection board

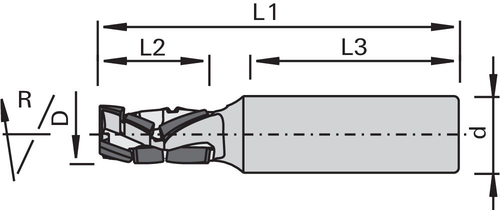

	Feature	Value
	Ø D = Cutting circle diameter	12 [mm]
	L2 = Cutting width	28 [mm]
	Ø d = Shank diameter	16 [mm]
	L3 = Shank length	45 [mm]
	L1 = Total length	80 [mm]
	Z = No. of teeth	3+3
	Helical direction = Helical direction	positive
	nmax = maximum RPM	24,000 [min-1]

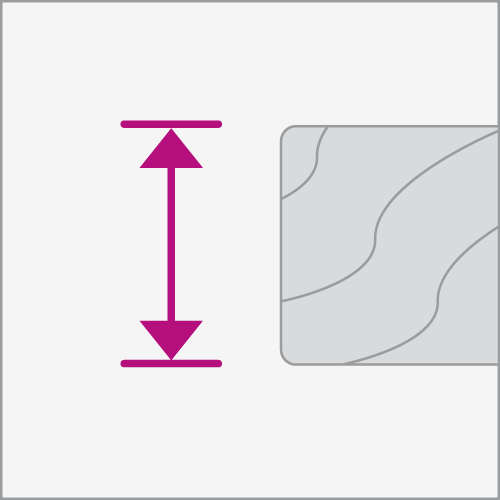

	H = Wood thickness	22-25 * [mm]
	Resharpening area = Resharpening area	1.6 [mm]
	L/R = cutting direction	R
	L = Delivery Status
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
