185499 - High-Performance Shank-Type Cutters CM DP - Z=4+4
Product

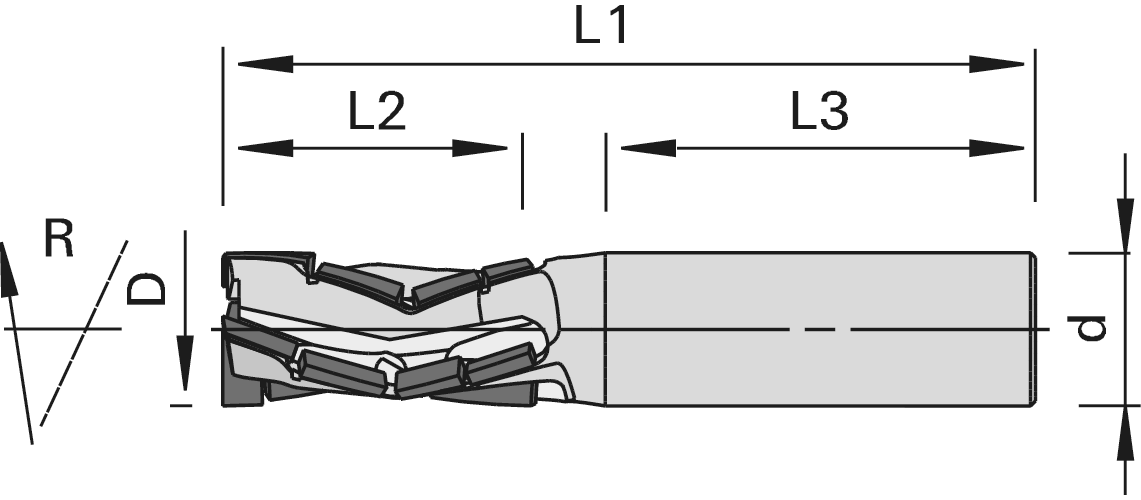

Drawing
-
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for sizing and dividing cuts in raw, melamine-, paper-, HPL-laminated, foiled and veneered panels
- high-performance tool for rough and finish milling
Design
- with DP plunge tip for diagonal plunge-cutting
- with alternating shear angle
- resharpening area approx. 1.6 mm
- n max = 24,000 min-1
Advantages
- optimum cutting quality thanks to shear angle, alternating top and bottom
- high hogging volume
- optimized chip removal
Notes
- clamping elements: use in high-precision clamping elements recommended (e.g. TRIBOS, hydro expansion chuck ps-System, heat shrink-fit chuck)
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 16 [mm] | |
| L2 = Cutting width | 32 [mm] | |
| Ø d = Shank diameter | 16 [mm] | |
| L3 = Shank length | 45 [mm] | |
| L1 = Total length | 85 [mm] | |
| Z = No. of teeth | 4+4 | |
| nmax = maximum RPM | 24,000 [min-1] | |
| Resharpening area = Resharpening area | 1.6 [mm] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
