167603 - Rounding Cutters HW-tipped with thrust ring

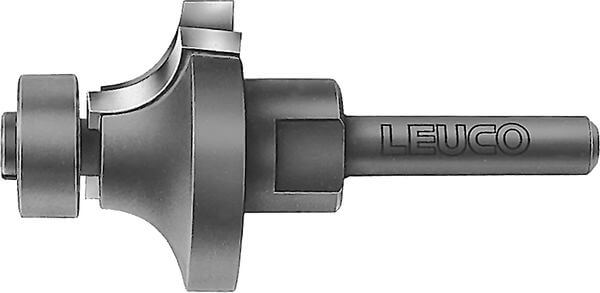

Product
Drawing
-
- Tungsten Carbide [HW]
- MAN
Technical data
Description
Machine / Application
- portable routers
- for rounding of solid wood, veneer and plastic edge bands as well as solid woods and wood-based panels
Design
- cutting edges parallel to cutter axis
- rounding with ball-bearing mounted rub collar
Advantages
Notes
- template copying
- clamping elements: draw-in collet chuck
| Feature | Value | |
|---|---|---|
| R = Radius | 4,0 [mm] | |
| Ø D = Cutting circle diameter | 20 [mm] | |
| Ø d = Shank diameter | 8,0 [mm] | |
| Z = No. of teeth | 2 | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
Spare parts / accessories
| Product picture | Description | Design | Ident-No. | ||
|---|---|---|---|---|---|
|
Ball Bearings | Ø12 | 167923 | ||
|
available from stock |
|||||
