178221 - Radius Profile Knives HW with 1 cutting radius
Product

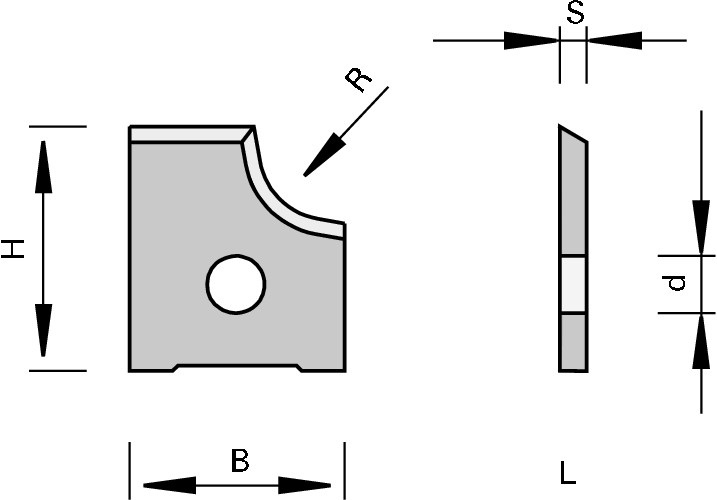

Drawing
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- for use in rounding cutterheads
Design
- cutting material: HW
- HL Board 05 and HL Board 06 for wood-based panels, plastics and hard woods
Advantages
Notes
- packing unit: 10 pieces
| Feature | Value | |
|---|---|---|
| Dimension | 16,1x14x2 [mm] | |
| R = Radius | 3,0 [mm] | |
| B = Width | 16,1 [mm] | |
| H = Height | 14 [mm] | |
| S = Thickness | 2 [mm] | |
| Ø d = Bore diameter | 5,0 [mm] | |
| Wedge∡ = Wedge angle | 55 [°] | |
| Profile run-out = Profile run-out | 15 [°] | |
| LEUCODUR = Cutting material | HL Board 06 | |
| PU = Packing unit | 10 [pc.] | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
