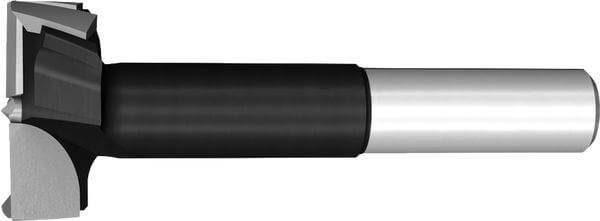

Cylinder Boring Bits HW - "Light"

Product

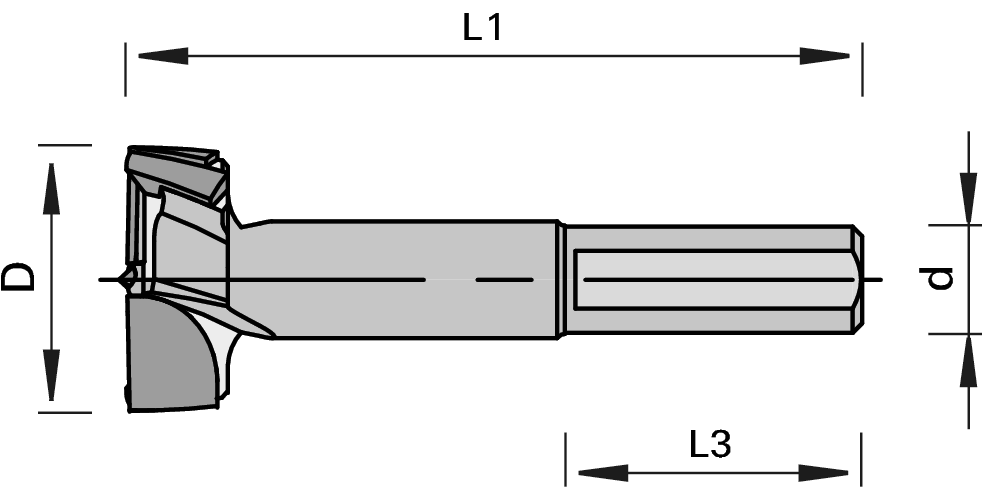

Drawing

  • Tungsten Carbide [HW]
  • MAN

Article

Description

Machine / Application

  • hardware hinge machines
  • automatic boring machines
  • CNC machining centers
  • for chip-free drilling of hinge hardware holes in solid woods and wood-based panels

Design

  • 2 rakers, 2 spurs and centering point
  • HW-tipped

Advantages

  • chip-free bore holes even on partly open holes near the edge of the panel thanks to particular geometry of spurs
  • excellent chip removal thanks to big gullets
  • the shorter center point allows for drilling deep holes close to the bottom of panel
  • low cutting pressure

Notes

  • cylindrical shank with clamping surface
  • with length adjusting screw M5x10 DIN 551
  • adjusting screw Ident-No. 186017 M5x11,5 for Weeke quick clamping chuck must be ordered separately
  • clamping elements: combi chuck, quick-clamping chuck

Table- and picture caption ...

Ø D
[mm] 		Ø d
[mm] 		L3
[mm] 		L1
[mm] 		Z L/R Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

15 10 26 57.5 2+2 R 184676
|
15 10 26 57.5 2+2 L 184677
|
18 10 26 57.5 2+2 R 185028
|
18 10 26 57.5 2+2 L 185029
|
20 10 26 57.5 2+2 R 185030
|
20 10 26 57.5 2+2 L 185031
|
25 10 26 57.5 2+2 R 184678
|
25 10 26 57.5 2+2 L 184679
|
26 10 26 57.5 2+2 R 185032
|
26 10 26 57.5 2+2 L 185033
|
Show 1 to 10 of 24 entries
