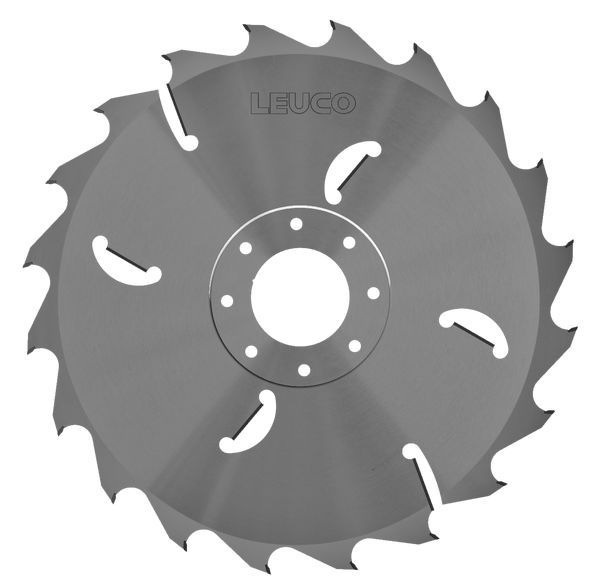

80250584 - Pre-Cut Gang-Rip Saw Blades HW with HW-rakers "F" - Linck
Product

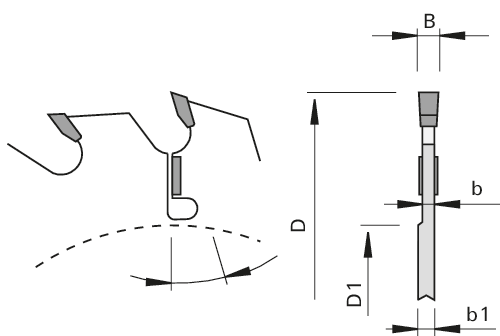

Drawing
-
-
- Tungsten Carbide [HW]
Technical data
Description
Machine / Application
- primary machines with and without chippers
- for longitudinal cuts in wet and dry soft woods
Design
- tooth configuration: flat "F"
- cutting material: HW HL Board 20
- type A and C with staggered double keyways
Advantages
- extremely high bending strength and hardness of the teeth
- tungsten carbide rakers prevent the sides of the wood from making contact with the steel plate
- staggering the types (A-C-A etc.) on the shaft creates a cut division that puts less pressure on the machine
Notes
- the saw blade is optimized according to the LEUCO company standards as well as according to the customers specifications and machine parameters after consultation with the technical engineering
- Ident-No. is only for orientation
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 648 [mm] | |
| B = Cutting width | 5,6 [mm] | |
| b = Body thickness | 3.8 [mm] | |
| b1 = Hub width 1 | 6.8 [mm] | |
| Ø D1 = Hub diameter | 210 [mm] | |
| Ø d = Bore diameter | 160 [mm] | |
| Z = No. of teeth | 24 | |
| Number of rakers = Number of rakers | 8 [pc.] | |
| NL = Pin holes | 8/11/185 | |
| Hook angle = Hook angle | 22 [°] | |
| L/R = cutting direction | R | |
| Tooth geometry = Tooth configuration | F | |
| LEUCODUR = Cutting material | HL Board 20 | |
| L = Delivery Status | ||
| Machine/Type | Linck CSMK 375 | |
|
Dimensions entered are not listed?
available from stock |
||
