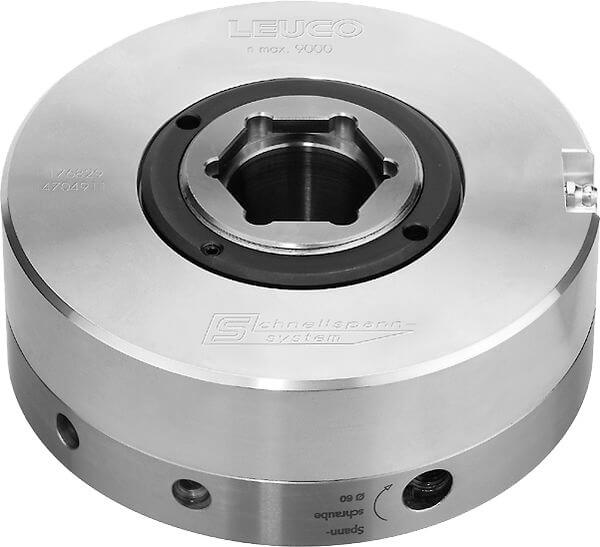

Hydro Clamping System Ø 160 mm - cutters

Product

Drawing

Article

Description

Machine / Application

  • for mounting of tools with bore

Design

  • hardened tool mounting area
  • n max = 9,000 min-1
  • closed hydraulic system with two clamping zones
  • clamping zone 1: for tight-tolerance fit on the motor shaft (runout)
  • clamping zone 2: for tight-tolerance fit of milling tools on the clamping element (concentricity)

Advantages

  • high cutting quality thanks to distinctly increased runout accuracy and concentricity
  • consistent runout accuracy after each tool change
  • minimization of setup-times thanks to easy and quick tool change
  • maintenance-free

Notes

  • for clockwise and counter-clockwise rotation
  • specifically designed for high-precision motors with hexagonal spindle base
  • for changing the tools the pneumatic part Ident-No. 058250 is necessary
  • operational pressure 6 bar
  • included in delivery: hydro quick-clamping system incl. Screwdrivers

Table- and picture caption ...

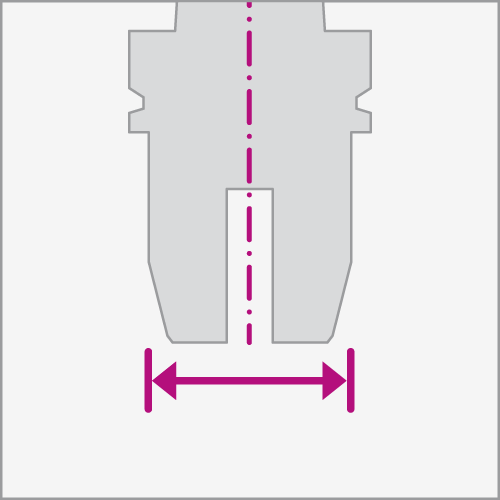

Ø d1

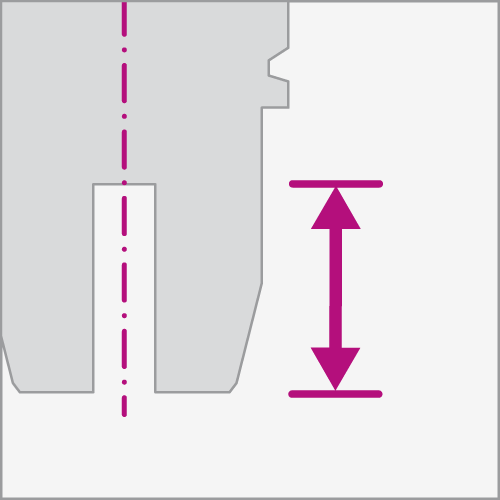

[mm] 		L2
[mm] 		Ø d
[mm] 		Ø D
[mm] 		a
[mm] 		Remarks Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

60 35 40 160 53 milling tools 176829
|
