Edge Jointing Cutterheads HW

Product

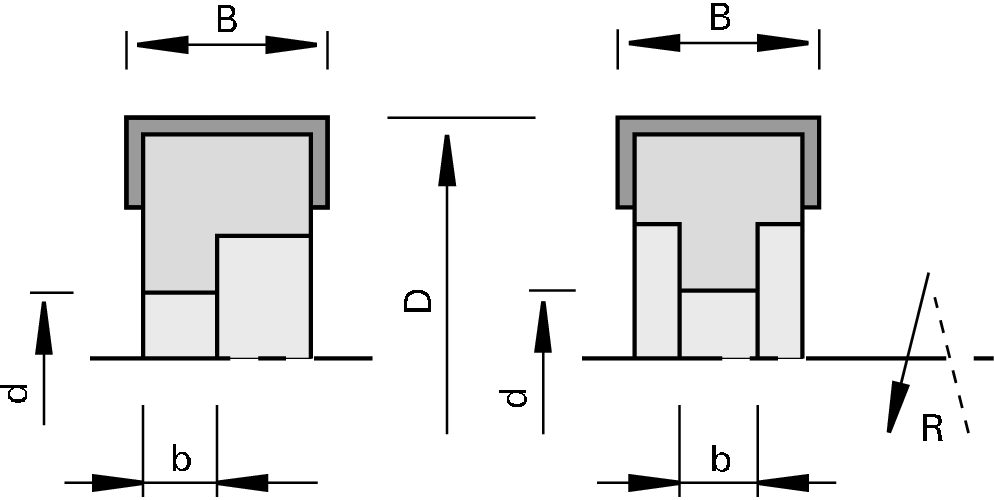

Drawing

  • Tungsten Carbide [HW]
  • MEC

Article

Description

Machine / Application

  • edge banding machines
  • for jointing and flush-cutting of solid wood, veneer and plastic edge bands

Design

  • cutting edges parallel to cutter axis
  • cutting material: HW HL Board 05
  • n max = 18,000 min-1

Advantages

Notes

  • sense of rotation according to VDMA 8849

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		b
[mm] 		Ø d
[mm] 		Z DKN
[mm] 		nmax
[min-1] 		L/R Machine/Type Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

50 12 10 16 4 5x2,3 18,000 N Sudhoff, EBM, Ney 167258
|
50 12 10 16 2 5x2,3 18,000 N Homag, Homburg 164066
|
50 15 10 16 4 5x2,3 18,000 N EBM 179139
|
50 15 10 16 2 5x2,3 18,000 N IMA, Raimann 164067
|
61 12 10 16 3 5x2,3 18,000 N Homag 167899
|
61 20 11 16 3 5x2,3 18,000 N Homag 167900
|
70 12 10 16 6 5x2,3 18,000 N Brandt, Homag 164073
|
70 12 10 16 4 5x2,3 18,000 N Brandt, Homag 164068
|
70 20 11 16 2 5x2,3 18,000 N Reich 182077
|

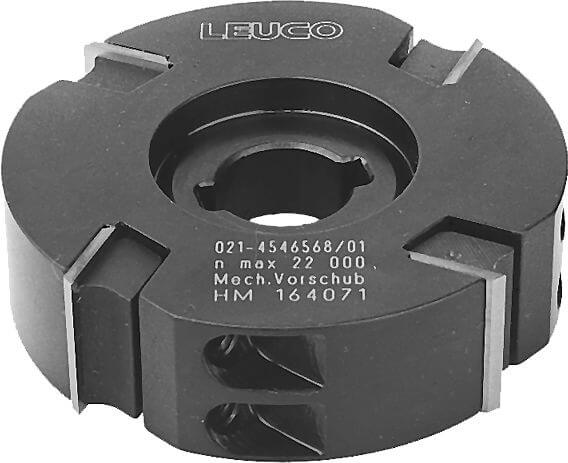

70 20 11 16 4 5x2,3 18,000 N Homag, HOLZ-HER 1823, Biesse Akron 400 RS 502 164071
|
Show 1 to 10 of 17 entries
