185447 - DIAMAX Edge Rounding Flush-Cutting Cutters - HOLZ-HER FR701 - AirStream-System
Product
Drawing
-
-

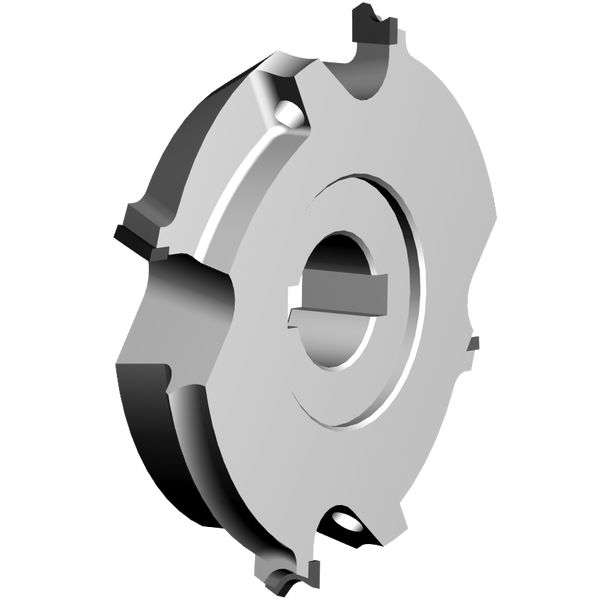

- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- edge banding machines HOLZ-HER aggregate FR701
- for rounding and flush-cutting of solid wood, veneer and plastic edge bands
Design
- with shear angle
- polished face and high-finish clearance angle
- AirStream-System
- n max = 24,000 min-1
Advantages
- considerably increased chip caption degree thanks to AirStream-System
- less chips remain inside of the machine
- no malfunctions due to chips
- reduction of suction power
- very low noise level
Notes
- constant basic dimensions a and D1
- sense of rotation according to VDMA 8849
- not for resharpening
| Feature | Value | |
|---|---|---|
| R = Radius | 2,0 [mm] | |
| Ø D = Cutting circle diameter | 71.8 [mm] | |
| Ø D1 = Basis cutting circle diameter | 68 [mm] | |
| a = Distance to machine | 14 [mm] | |
| b = Hub width | 12.5 [mm] | |
| Ø d = Bore diameter | 16 [mm] | |
| Z = No. of teeth | 2+2 | |
| DKN = Double keyway | 5x2,3 [mm] | |
| nmax = maximum RPM | 24,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | HOLZ-HER FR701 | |
|
Dimensions entered are not listed?
available from stock |
||
