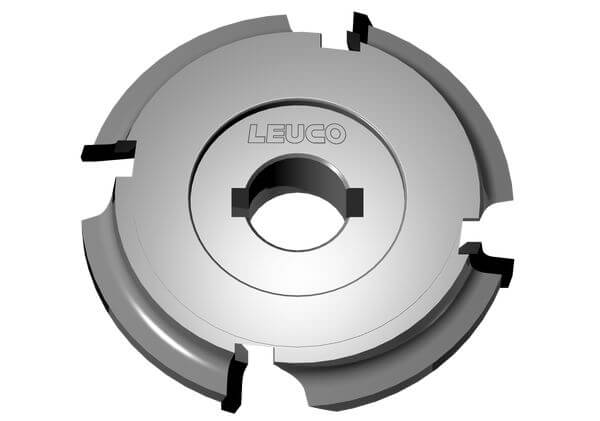

Edge Rounding Cutters HW - SCM-IDM

Product

Drawing

Tungsten Carbide [HW]
MEC

current tab: current tab: Article

Article

Machine / Application

edge banding machines SCM-IDM with ED system and aggregate C1 / C2
for rounding of solid wood, veneer and plastic edge bands

Design

with shear angle
polished face and high-finish clearance angle
n max = 18,000 min-1

Advantages

optimized chip removal
less chips remain inside of the machine
no malfunctions due to chips
reduction of suction power
noise reduced

Notes

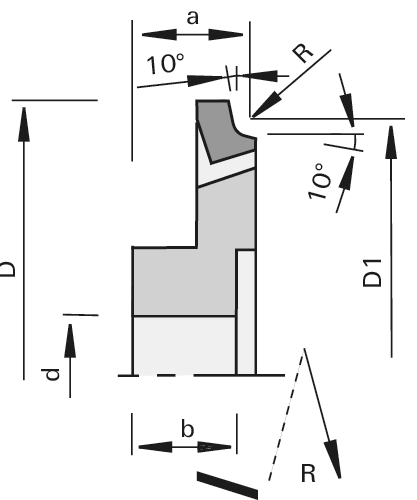

constant basic dimensions a and D1
sense of rotation according to VDMA 8849

Showentries

	R [mm]	Ø D [mm]	Ø D1 [mm]	a [mm]	b [mm]	Ø d [mm]	Z	DKN [mm]	Hook angle [°]	Shear∡ [°]	L/R	Ident-No.	Comp./ Inqu.
Dimensions entered are not listed? Please contact our application consulting . available from stock available on short notice Delivery time on request
	1,0	70	62,031	14.5	14	16	3	5x2,3	15	15	L	182911	\|
	1,0	70	62,031	14.5	14	16	4	5x2,3	15	15	R	182910	\|
	1,5	70	63,046	14.5	14	16	4	5x2,3	15	15	L	182909	\|
	1,5	70	63,046	14.5	14	16	4	5x2,3	15	15	R	182908	\|
	2,0	70	64,062	14.5	14	16	4	5x2,3	15	15	L	182907	\|
	2,0	70	64,062	14.5	14	16	4	5x2,3	15	15	R	182906	\|
	3,0	70	66,092	14.5	14	16	4	5x2,3	15	15	L	182903	\|
	3,0	70	66,092	14.5	14	16	4	5x2,3	15	15	R	182902	\|

Show 1 to 8 of 8 entries
