186313 - DIAREX airFace Jointing Cutters DP
Product

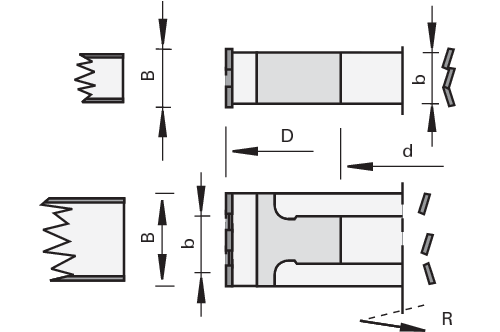

Drawing
-
- Polycrystalline diamond [DP]
- MEC
Technical data
Description
Machine / Application
- through feed machines
- edge banding machines
- for very quiet and chip-free jointing of solid wood and wood-based panels with and without coating, focusing particularly on noise reduction and quality standards
Design
- steel body with airFace surface
- integrated balance screws
- reinforced DP cutting edges
- reduced gullet volume
- shear angle 48°
- resharpening area 3 mm
Advantages
- compared to the LowNoise version, additional noise reduction by -2 dB(A) through airFace design and reduced gullet volume
- increased durability in comparison to standard jointing cutters
- optimum cutting quality thanks to a very large shear angle
- suitable for zero-joint technology
- suitable for demanding abrasive panel materials
- machining of 8-mm panels is possible without adjustment
Notes
- Z=4+4 tools for feed speed > 22 m/min!
- possible to regenerate
- sense of rotation according to VDMA 8849
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 100 [mm] | |
| B = Cutting width | 42,8 [mm] | |
| b = Hub width | 40.6 [mm] | |
| Ø d = Bore diameter | 30 [mm] | |
| Z = No. of teeth | 3+3 | |
| DKN = Double keyway | 8x3,3 [mm] | |
| nmax = maximum RPM | 18,000 [min-1] | |
| L/R = cutting direction | R | |
| L = Delivery Status | ||
| Machine/Type | Homag (Brandt) | |
| Remarks | asymmetrical | |
|
Dimensions entered are not listed?
available from stock |
||
