Hydro Profile Cutterheads HS

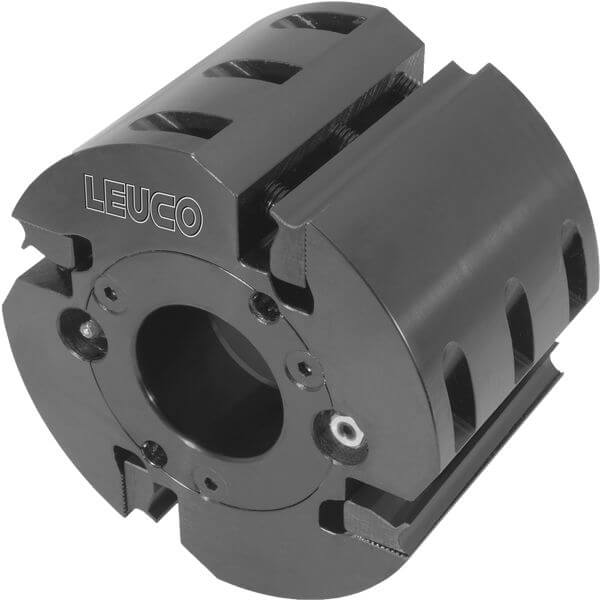

Product

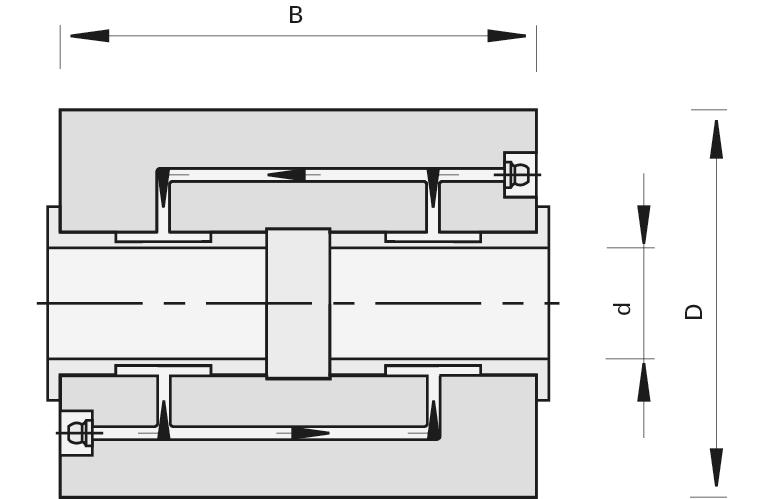

Drawing

  • MEC

Article

Description

Machine / Application

  • hydro profile molders
  • for profiling of solid woods

Design

  • the max. RPM depends from the knife height (see table "Max. RPM")

Advantages

  • best cutting quality without knife marks at high feed rates
  • precise concentricity tolerance (system Weinig) thanks to dual-chamber Hydro clamping
  • high concentric accuracy and low operating vibration
  • tight clamping thanks to precise serration (60 degrees, 1.6 mm pitch)

Notes

  • adjustable knives
  • profile depth and cutting circle Ø see table
  • for back-serrated blanks S = 5, 8, 10 mm
  • included in delivery: cutterhead and wedges; for blanks see chapter Turnover knives, Profile Knives, Knives

Table- and picture caption ...

Ø D
[mm] 		B
[mm] 		Ø d
[mm] 		Z nmax
[min-1] 		Ident-No. Comp./ Inqu.

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request

137 60 40 4 9,000 176342
|
137 100 40 4 9,000 176343
|
137 130 40 4 9,000 176344
|
137 150 40 4 9,000 176345
|
137 180 40 4 9,000 176346
|
137 230 40 4 9,000 176347
|
150 60 50 4 6,000 176348
|
150 60 50 6 6,000 176349
|
150 100 50 4 6,000 176350
|
150 100 50 6 6,000 176351
|
Show 1 to 10 of 38 entries
