185536 - Roughing / Finishing Cutter VHW "NF"
Product

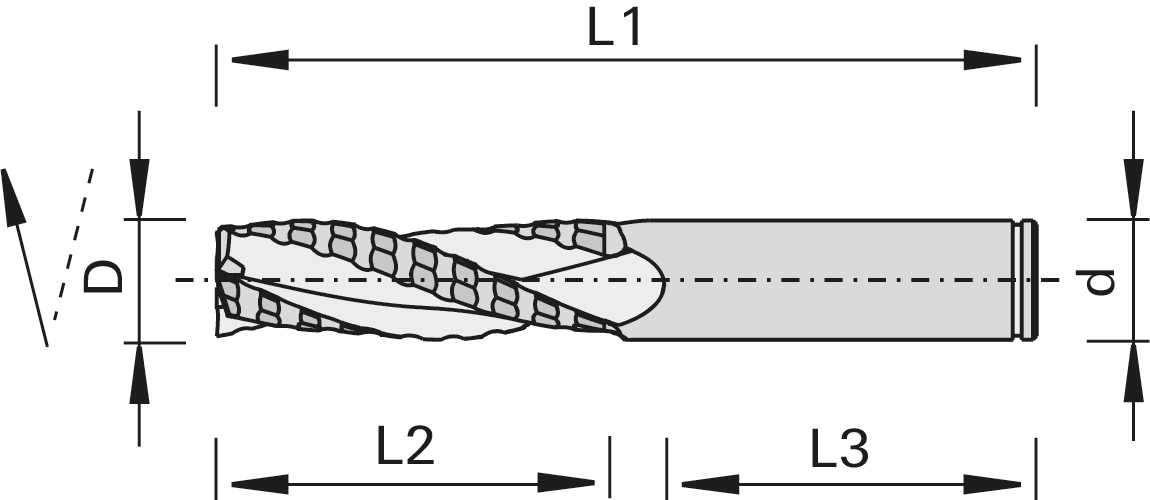

Drawing
-
- Solid Tungsten Carbide
- MEC
Technical data
Description
Machine / Application
- CNC routers
- for sizing and grooving particularly in soft and hard woods, glued woods, Multiplex, plywood and many wood-based panels
- for cutting of cut-outs and contours
- traveling plunge cut using Z and X or Y axis
Design
- NF serration
- Z=3 for high cutting performance
- positive spiral for tightly clamped workpieces face side down
- negative spiral for workpiece support with face side up
- n max = 30,000 min-1
Advantages
- cutting surfaces almost in finishing quality
- reduced effort thanks to division of cut
- smooth running
Notes
- clamping elements:we recommend hydro expansion chuck ps-System, TRIBOS or heat shrink-fit chuck
| Feature | Value | |
|---|---|---|
| Ø D = Cutting circle diameter | 20 [mm] | |
| L2 = Cutting width | 60 [mm] | |
| Ø d = Shank diameter | 20 [mm] | |
| L3 = Shank length | 55 [mm] | |
| L1 = Total length | 120 [mm] | |
| Z = No. of teeth | 3 | |
| Helical direction = Helical direction | positive | |
| L/R = cutting direction | L | |
| L = Delivery Status | ||
|
Dimensions entered are not listed?
available from stock |
||
