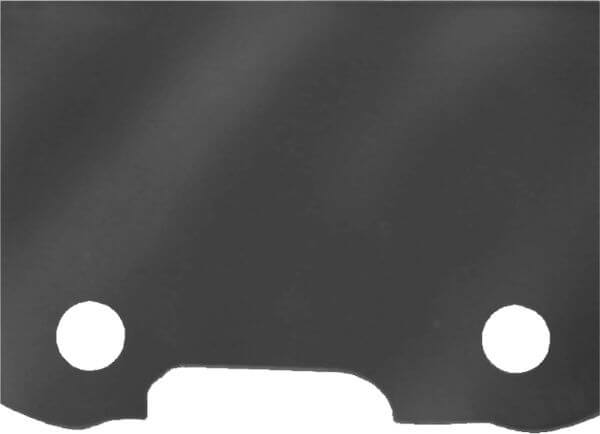

179113 - SuperProfiler Blanks HW

Product

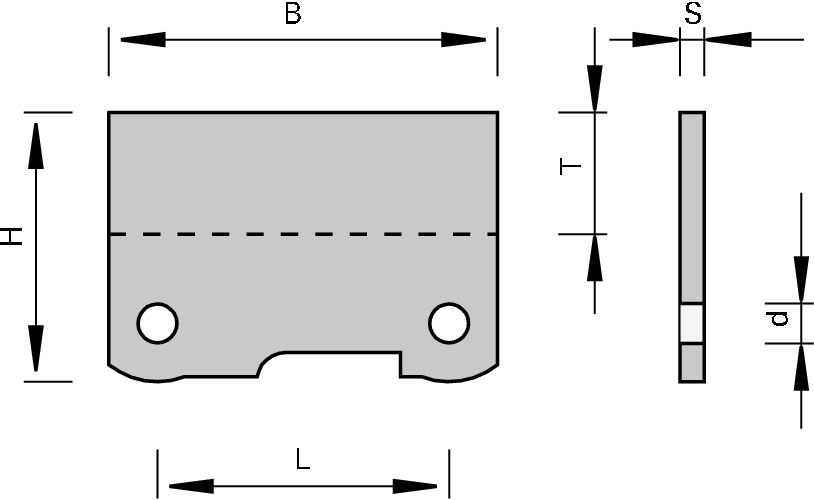

Drawing

  • Tungsten Carbide [HW]

Comp./ Inqu. |

Technical data

Description

Machine / Application

  • for use in LEUCO SuperProfiler cutterheads

Design

  • thickness ground
  • optionally topline (polished face)
  • cutting material: HW
  • HL Board 06 for wood-based panels, plastics and hard woods
  • HL Solid 60 for soft woods

Advantages

  • topline design: highest cutting quality and significantly improved cutting edges

Notes

  • for concave and convex profiles

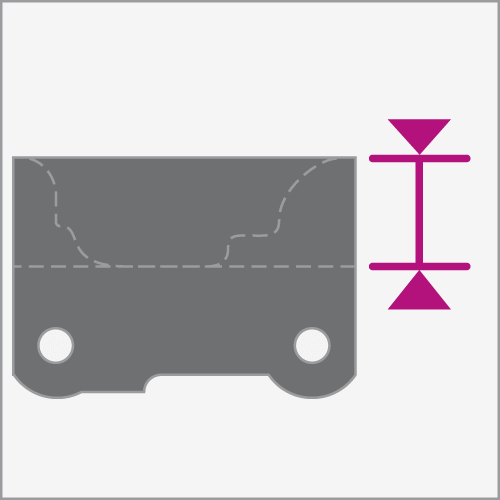

  • T = maximum profile depth
FeatureValue
Dimension 60,8x30,2x1,5 [mm]
B = Width 60,8 [mm]
H = Height 30.2 [mm]
S = Thickness 1.5 [mm]
Ø d = Bore diameter 4,0 [mm]
L = Bore distance 48 [mm]
Tmax = Maximum profile depth 15 [mm]
LEUCODUR = Cutting material HL Board 06
PU = Packing unit 10 [pc.]
L = Delivery Status

Dimensions entered are not listed?
Please contact our application consulting .

available from stock
available on short notice
Delivery time on request
